4.1   Materials

  • Tap the Material Editor in the Materials / Loads tab of the tool palette to view the materials currently assigned to the drawing, and to add new materials to the drawing.
  • Add a new material to the drawing by tapping the button at the bottom right of the material editor.
  • Edit an existing material in the drawing by tapping row of the material in the material editor.
  • Once a material is added to a drawing, it is available to be used to fill a region using the Select/Pan Tool . The material can also be saved to the Material Library for later use, by tapping the Add to Library button at the bottom right of the editor.
  • Up to 10 materials can be displayed in the material editor. If more than 10 materials exist in the drawing, you may scroll down to see the remaining materials.

Material Library

  • In the file management view, tap the button at the bottom of the screen to view, add, edit, and remove materials in the material library.

Material Types

MobiSlope allows the following material types to be defined:
  • Soil - materials defined using the Mohr-Coulomb strength parameters c' and Φ '. Total Unit Weight must also be specified.
  • No Strength - materials which have unit weight, but have no strength and through which slip surfaces pass vertically. Used to model fluids such as water.
  • Impenetrable - materials through which slip surfaces can not penetrate. Strength and unit weight parameters are ignored. Used to model hard layers such as bedrock.

Strength with Depth

  • A strength variation with depth for the cohesion (c) and friction (Φ) parameters may be specified for Mohr-Coulomb materials, as follows:
  • Initial Cohesion - starting value of cohesion at the top of layer or datum point as specified. (kPa) or (psf)
  • Δ Cohesion - rate of change with depth of the cohesion parameter. (kPa/m) or (psf/ft)
  • Maximum Cohesion - limiting maximum value of cohesion parameter at depth. (kPa) Leave it set to 0 for no limit.
  • Initial Friction - starting value of friction angle at the top of layer or datum point as specified. (deg)
  • Δ Cohesion - rate of change with depth of the friction parameter. (deg)
  • Maximum Friction - limiting maximum value of friction angle parameter at depth. (deg). Leave it set to 0 for no limit.
  • Relative to - elevation at which the strength change begins, measured either to the top of layer or specified datum. See figure 1a and 1b below.
  • Datum - specified datum elevation from which to measure strength change of cohesion/friction parameters. (m) or (ft)

Figure 1a - Strength increase measured relative to top of layer

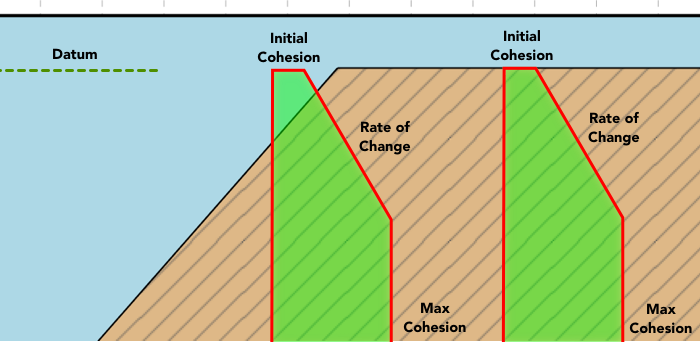

Figure 1b - Strength increase measured relative to specified datum elevation

Anisotropy

  • Anisotropic strength parameters for Mohr-Coulomb materials may be specified using the transverse isotropic model, or by defining custom ranges of slice base angles for which anisotropic parameters apply.
  • The Transverse Isotropic model gives the available strength a smooth transition between two sets of parameters that are orthogonal to each other (90 degrees). The cohesion and friction angle are calculated depending on the slice base angle as follows:
  • where c1, ϕ1 define the first plane and c2, ϕ2 the second plane, α is the angle of the slice base from the horizontal, and β is the optional offset of the first plane from the horizontal, as shown in the figure below:
  • Alternatively, you can Define Anisotropic Ranges, specifying the available cohesion and friction over specific ranges of slice base inclination, where the angles are defined from -90 to +90 degrees, where 0 represents the horizontal. It is not necessary to define the entire range of angles, if a slice falls outside the specified ranges the default cohesion and friction values for the material are used.
  • Note: In MobiSlope, slice base angles are defined depending on the direction of slip. For left to right slips, positive angles are measured from the negative x-axis, while for right to left slips, positive angles are measured from the positive x-axis. The result is that for all slips, positive slice base angles generally correspond to driving (active) slices, while negative slice base angles generally correspond to resisting (passive) slices. This is useful to keep in mind while defining material anisotropy using either method.

Pore Pressure Conditions

  • Pore pressure conditions may be specified for each material by a pore pressure coefficient, ru or B-bar, or by use of a piezometric surface, discussed in detail in the Pore Pressure Conditions section.

Statistical Distributions

  • Statistical distributions can be assigned to various parameters for probabilistic analysis. These parameters include unit weight, cohesion, friction, ru, B-bar, and the strength with depth and anisotropic parameters.
  • Tap the icon next to an available parameter to assign it a statistical distribution. The icon turns blue next to parameters that have statistical distributions assigned. See more on statistic distributions and probabilistic analysis in probabilistic analysis.

Material Colors and Patterns

  • A color and pattern may be assigned to each material by tapping the Color/Pattern field in the detail material editor.
